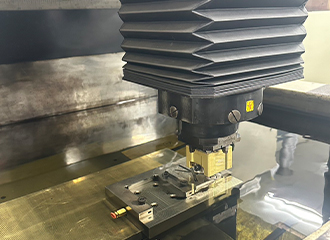

Form Milling

Form milling is best used for milling operations where more irregular surfaces are involved. Contours, outlines, edges, or parts with curved, flat surfaces.

It employed milling cutters or fly cutters specialized for particular applications – for example, concave cutters or corner rounding cutters. Hemispherical or semi-circular designs or other similarly intricate designs with complex parts would benefit from the form milling technique.

Advantages of Form Milling

Complex Shape Production:
Form milling allows for the creation of complex and intricate shapes and profiles that would be challenging or time-consuming to produce using other methods.

High Precision:
It can achieve high precision and tight tolerances, making it suitable for applications where accuracy is crucial.

Single-Pass Machining:
In many cases, form milling can achieve the desired shape in a single pass, reducing the need for multiple machining operations.

Versatility:
Form milling can be used on various materials, including metals, plastics, and composites, making it versatile for different industries.

Cost-Effective for Prototyping:
Form milling is often used for prototyping and small-batch production, as it eliminates the need for expensive tooling or molds commonly associated with other processes.

Disadvantages of Form Milling

Tool Wear:
Form cutters may wear out relatively quickly, especially when machining hard materials or intricate shapes. Frequent tool changes can be necessary.

Limited to 2D and 2.5D Shapes:
Form milling is primarily suitable for producing two-dimensional (2D) and 2.5D shapes. Creating true 3D shapes can be more challenging.

Surface Finish:
Achieving a high-quality surface finish may require additional finishing processes, as the form cutter may leave a rough or irregular surface.

Complex Setup:
The setup for form milling can be intricate and time-consuming, especially when working with highly detailed shapes and profiles.

Material Removal Rate:
Form milling may not be as efficient as some other machining processes when it comes to removing a large volume of material quickly.

Machining Time:
Creating complex shapes using form milling can be time-consuming, particularly for large or intricate workpieces.
